Rubberized Asphalt Kettle
Engineered for demanding rooftop conditions, the diesel fired oil-jacketed melting kettle with gravity pour delivery system delivers fast, uniform heating with its oil-jacketed design, ensuring consistent material flow and reduced downtime. Built for safety and durability, it provides reliable temperature control, stable operation, and efficiency throughout the sealing and waterproofing application.
ADVANTAGES
- STABLE OIL-JACKETED HEAT
- HYDRAULIC AGITATION
- NON-JAMMING SWEEP AGITATOR
- DIESEL-POWERED SYSTEM
- INSULATED FIRING CHAMBER
- GRAVITY-POUR DELIVERY
- 10-GA STEEL CONSTRUCTION
- KUBOTA DIESEL ENGINE
- SINGLE-FUEL OPERATION
HIGHLIGHTS
COMPATIBILITY
Works with standard 3" round plates and common cordless battery platforms, giving crews flexibility with suppliers and tools.
SPEED
High-capacity screw feeding accelerates plate installation and reduces stoppages caused by manual screwing.
ERGONOMICS
Work standing up eliminates constant bending, lowers daily strain, and helps crews work longer with less fatigue.
Documentation
Technical Data
| Capacity | Construction | Engine | Agitation | Delivery | Fuel | Axle Capacity |
Tires | Applications |
|---|---|---|---|---|---|---|---|---|
| 130 gal | 10-ga steel, fully welded | 6 hp Kubota diesel | Hydraulic | Gravity pour | Diesel (single source) | 5,200 lbs | (2) 225/75/R15 | Roofing, waterproofing |
Models
DIRECT FIRED KETTLES
Fast setup. Reliable heat. Built for daily roofing & waterproofing.
Direct fired kettles are designed for contractors who need fast melting, reliable heat, and simple daily
operation. Ideal for waterproofing and roofing work, these units deliver dependable performance in a
compact, jobsite-ready design.
| Capacity | Construction | Engine | Agitation | Delivery | Fuel | Axle Capacity |
Tires | Applications |
|---|---|---|---|---|---|---|---|---|
| 130 gal | 10-ga steel, fully welded | 6 hp Kubota diesel | Hydraulic | Gravity pour | Diesel (single source) | 5,200 lbs | (2) 225/75/R15 | Roofing, waterproofing |
KER-DFSM0030_
30 GAL DIRECT FIRED MELTER
The skid mounted 30 gallon melter is designed to be used with applicator pots and tools. The 30 gallon melters come equipped with a 2” gravity fed valve to dispense material into an applicator pot or pouring bucket. Each unit is hand agitated and comes with a material thermometer, lifting handles, double headed 160,000 BTU burner and propane hose with regulator.
KER-DFSM0060_
60 GAL DIRECT FIRED MELTER
The skid mounted 60-gallon melter is designed to be used with applicator pots and tools. Equipped with a 5.5hp engine powers the agitation and a double headed 160,000 BTU propane burner to provide fast heat up times. The unit is also equipped with a material thermometer, propane hose with regulator and 2” draw off valve. Designed to fit into service elevators. Available with casters for ease of movement on job site.
KER-OJWB0011_

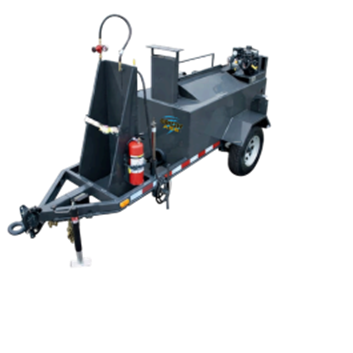

100 GAL DIRECT FIRED MELTER
The largest direct fired kettle available holds a capacity for 100 gallons of rubberized ashphalt. This unit allows the contractor to increase the amount of material being melted without upgrading to a larger oil jacketed kettle. This unit comes with a single 3,500 lb axle with electric brakes and breakaway kit. Material is heated with a 300,000 BTU propane burner and comes with a single propane bottle holder.
OIL JACKETED MELTING KETTLES
Propane Fired or Diesel Fired – Gravity Pour Delivery System
Oil jacketed melting kettles are designed for large-scale waterproofing projects.
The oil jacketed system provides uniform heat distribution, prevents material scorching, and ensures
precise temperature control for consistent application.
SELECT THE RIGHT CAPACITY
| MODELS | MATERIAL VAT | BEST FOR |
|---|---|---|
| KER-OJTW0130D__S_ | 130 GAL (492 L) | MEDIUM CREWS, DAILY SEALING |
| KER-OJTW0230D__S_ | 230 GAL (870 L) | HIGH-PRODUCTION CREWS |
| KER-OJTW0370D__S_ | 370 GAL (1,399 L) | MUNICIPAL & LARGE |
WHICH FUEL IS RIGHT FOR YOUR CREW?
| PROPANE | DIESEL |
|---|---|
|
|

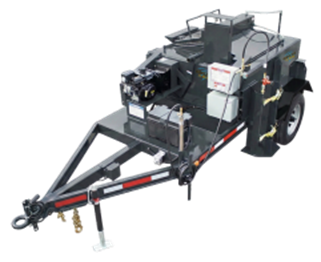

KER-OJTW0130D_PS_
130 GALLONS

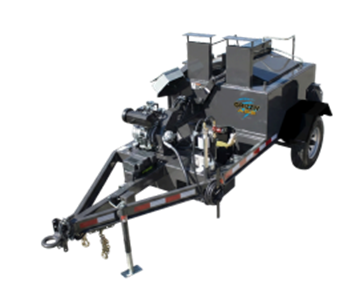

KER-OJTW0130D_DS_
130 GALLONS

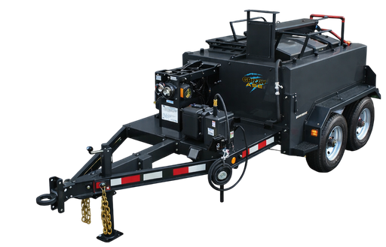

KER-OJTW0230D_PS_
230 GALLONS

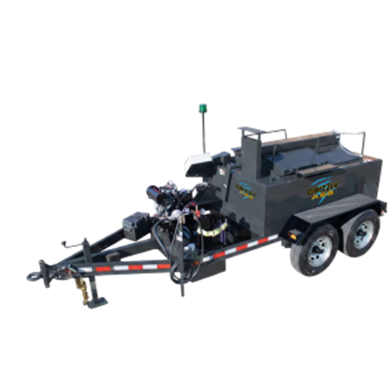

KER-OJTW0230D_DS_
230 GALLONS

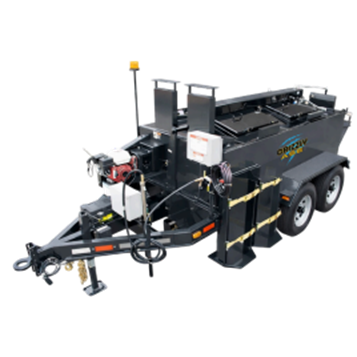

KER-OJTW0370D_PS_
370 GALLONS

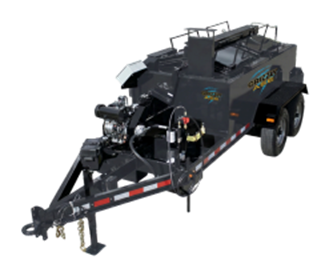

KER-OJTW0370D_DS_
370 GALLONS
OPTIONAL EQUIPMENT / ACCESSORIES FOR OIL JACKETED MELTING KETTLES
KER-ACCE1027B
KER-ACCE8140B
KER-ACCE1025B
KER-ACCE1010B
KER-ACCE1505B
Slow-moving vehicle sign
Amber strobe light
Flashing LED arrow stick advisor
LED Work light installed
Additional propane bottle holder
KER-ACCE8300B
KER-ACCE1147B

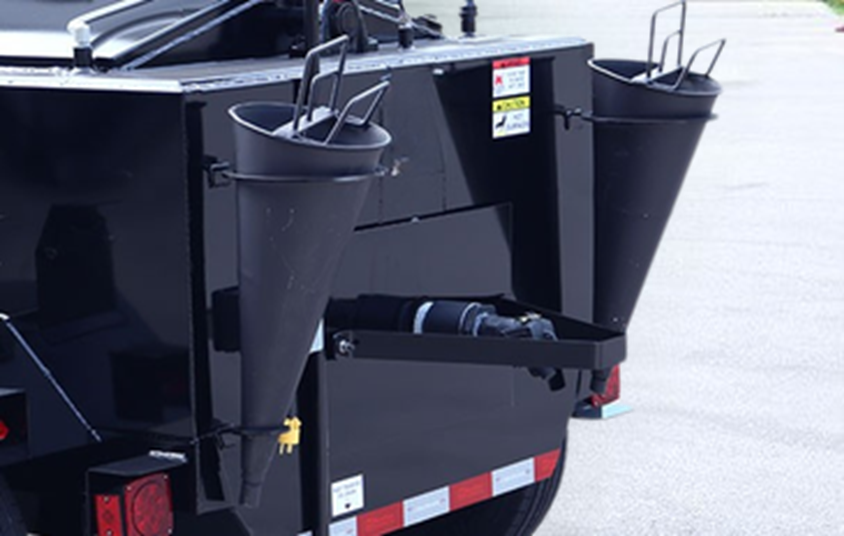

KER-ACCE0302B
KER-ACCE0304B
3" Molasses valve
Tool box installed on trailer
Bucket holder
Bucket bracket extension
OPTIONAL EQUIPMENT / ACCESSORIES
KER-ACCE8109B
KER-ACCETIREB
KER-ACCE9999C
KER-ACCE8200B
KER-ACCEATCPB
2-5/16" Ball hitch
Spare tire and rim mounted to trailer
Alternate standard paint colour
300,000 BTU Vapour propane torch with 15' propane hose & bottle holder
Automatic temperature control with electronic ignition, battery and charger
| KER-ACCE0205B | 3 gal. Pouring cone with 1″ nipple |
| KER-ACCERIMSB | Aluminum rims each |
WALK-BEHIND MELTER APPLICATOR
KER-OJWB0011_

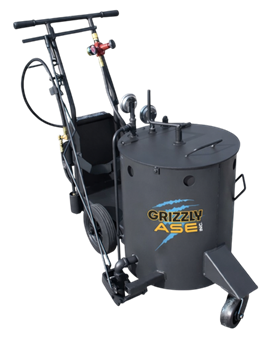

10 GAL OIL-JACKETED WALK-BEHIND
10 gallon oil jacketed melting kettle is an ideal size and design for small waterproofing projects. This kettle has many features of our larger oil jacketed melters, but in a smaller portable unit.
| MODELS | FRAME TYPE | CAPACITY | WEIGHT | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|---|---|---|
| KER-OJWB001I_ | PORTABLE | 10 GALLONS | 212 LBS (96 KG) | 60" | 24" | 38" |
