2000 HYDRAULIC SWING HOIST
Product Code: 102103 (Gas)
Product Code: 102107 (Electric)
One of All Seasons Equipment’s flagship hoists and oldest selling products.
Bigger, tougher and with greater hoisting capacity than that of its small counter-part the 1000 Swing Hoist; the ASE 2000 Swing Hoist brings with it a stronger, more capable swinging arm with 2 different options available for power pack. A must-have for those bigger on-site jobs.
KEY SPECIFICATIONS OF 2000 HYDRAULIC SWING HOIST
The 2000 Hydraulic Swing Hoist comes with a set of additional features:
- Maximum capacity of 2,000 lbs. on a single line (with 200ft cable).
- Dependable Honda Engine.
- Powerful Hydraulic System and fingertip control allow precision and ultra smooth load control.
- The FIRST hoist on the market that can be set up to swing left or right (Without extra pieces) for almost 35+ years.
- Detached power unit with 10ft hoses permits the operator to control the hoist in the optimal position.
- Safety system is backed by a double brake ensuring maximum protection.
- Hoist frame breaks down into 8 pieces for maximum portability (Fits in a freight elevator).
- 5/16" hoist cable (meets OSHA requirements).
A solid hoisting device.
*Specifications are subject to change without notice.

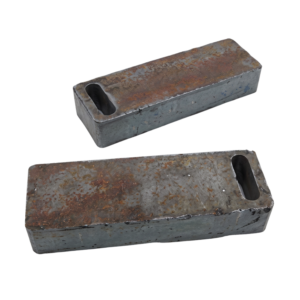

*Counterweights must always be used on the Hydraulic Swing Hoist when lifting any kind of material or equipment. Minimum one times the weight being lifted is recommended.
*Counterweights and Hoist Wheels are NOT included, and must be purchased seperately.
| System Information and Specs | ||
|---|---|---|
| Gas Engine: | 20 H.P. Honda | |
| Electric Motor: | 15 H.P. | |
| Electric Start: | Standard | |
| Power Requirement: | 208-230 | |
| Capacity With 200 ft. Cable: | 2000 lbs | |
| Cable Capacity Of Winch: | 500+ ft. | |
| Standard Cable Length: | 200 ft. | |
| Cable Size: | 5/16" | |
| Max Lift Speed: | 200 FPM | |
| Height Of Swing: | 153" | |
| Reach Of Swing: | 60" | |
| Hoist Dimensions: | ||
| Hoist Weight: | lbs | |

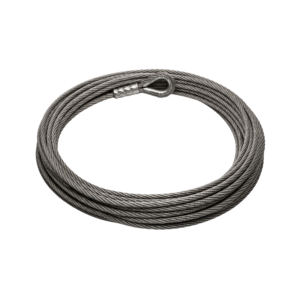

| Available Cables | ||
|---|---|---|
| Cable Length (ft) | Capacity (lbs) | |
| 200 | 2000 | |
| 300 | 1910 | |
| 400 | 1825 | |
| 500 | 1750 | |
Documentation
Swings Both Ways
The ASE Hydraulic Swing Hoist is a truly versatile machine, capable of swinging to the left or right depending on the frame set up. This allows the hoist to be set up in some of the most difficult areas.

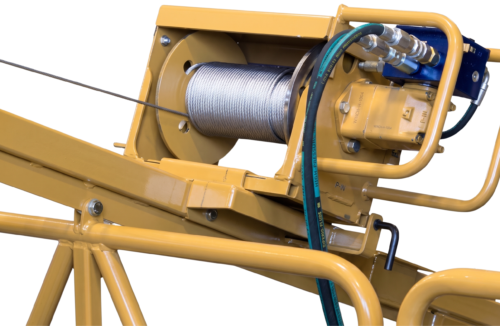

Hydraulic Winch
Product Code: 202252
The power pack is matched with a heavy duty winch unit. For safety, this winch is constructed of heavy gauge steel and the hydraulics include a double braking system.
* This winch comes standard with 200 ft. of cable. With a capacity of 500+ ft. of cable.
*Features may not apply to all hoist variants.
Attachments & Recommended Products

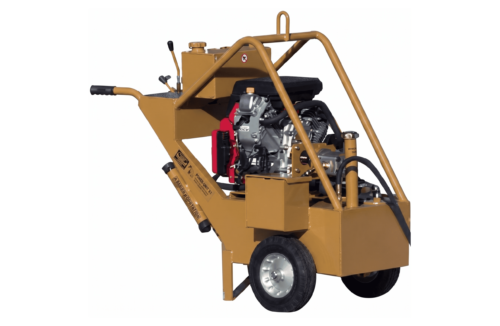

Power Unit
Product Code: 102127
Weight: 360lbs
Dimensions:
The HSH2000 Hydraulic Swing Hoist is powered by a 20 HP Honda Engine. The load and swing are controlled by a powerful hydraulic system that gives smooth feathering of loads with fingertip control and precision. The long hoses allow the power unit to be placed within a 10ft radius of the winch giving the operator maximum control when hoisting bulky loads.
* This Power Unit is included in the purchase of the ASE HSH2000.
Power Unit - Electric
Product Code: 102130
Weight: 424lbs
Dimensions: 53" x 23 1/2" x 45"
The Electric Power option on the ASE 2000 Hydraulic Swing Hoist allows for smooth, low noise and low maintenance operation. The electric powered units come standard with 230/460 3 phase electric motor and Control Box.
Transport Wheels
Product Code: call
Weight: 18lbs (each)
Dimensions: 18 x 8½ x 1
The ASE HSH2000 are equipped with wheel axles that allow for easy movement and repositioning of the hoist. These axles are mounted onto the end of the front hoist frame.
Wheels for these axles can be purchased separately.
Ground Base
Product Code: 102120 (Base only)
Product Code: 102118 (Power Pack + Winch)
Weight: 192lbs
Dimensions: 87¾ x 51¼ x 83
This unit is used if one choses to use the hoist without the frame. It is meant to be used from the ground level of the job site.
